RH-8400 Best Quality–RAECH SprayBooth With CE

Product Description

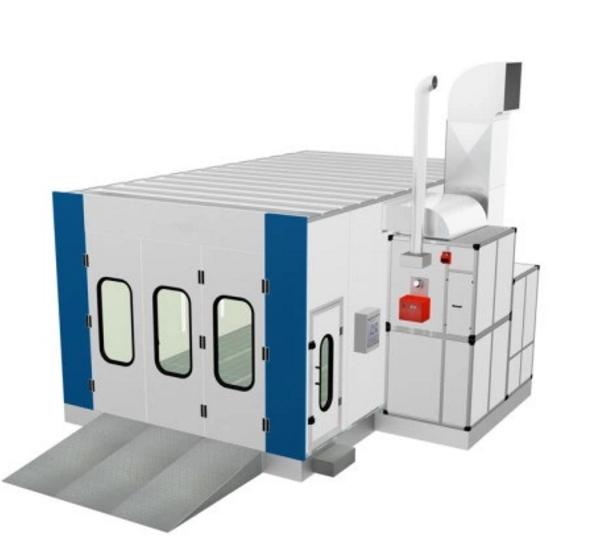

Advanced Car Spray Booth:

Model :RH-8400

Features

Cabin system:

1) Wall panel: 50mm thick flame-resistant and heat-preserving

EPS board; 0.426 thick colored steel

Roof panel: 0.8mm galvanized sheet;

2) Basement: steel structure base; two line grilles, three diamond plates; height is 300mm; three ramps;

Air circulation system:

Inhaling Ventilator:Model: YDW-4.5L1

Blower Capacity: 24000m3/h,Pressure: 800Pa,Rolling Speed: 900rpm,Power: 4kw,Quantity: 2sets

Exhaust Ventilator Model:YDW5.6M

Capacity:21000m3/h,Pressure:800Pa,Velocity:900rpm,Power:7.5KW,Quantity:1Set

Electric dampers actuate from spraying to baking cycle,equip with electric damper for exhaust air.

Generator: back upper intake air,back up extract air,quadrate steel frame,coated steel;

Air purification system:

G3 grade, Pockets filter Pre-filter, EU5 / F5 high efficiency filter (ceiling filter),

green fiber glass filter / G3 grade floor filter; Pocket filter or M green fiber glass filter and active carbon exhaust fan filter.

Heat system:

stainless steel SUS304 heat exchanger, RIELLO G20 diesel burner one stage,

heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set;

Spray to baking switch: 20N Electrical Actuator

Chimney Duct: 4 meters straight ducting and one chimney hood

heating time is 5~7 minutes;

Max heating temperature:80degree;

Lighting system:≥900Lux

Ceiling lights: 8Groupsx4Pcs=32Pcs x36W ;Side lights:8GroupsX2Pcs=16Pcsx36W;

Glass: all glass is clear tempered glass.

Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature,

time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;

Total power: 17.5KW

Specification

Dimension
